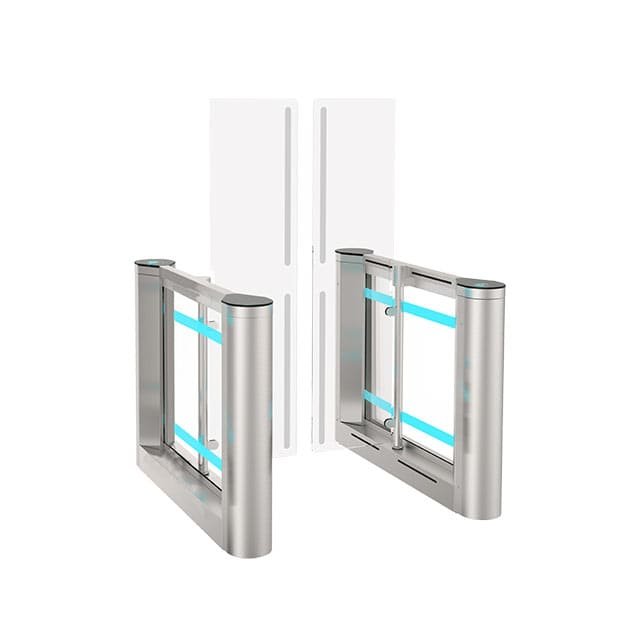

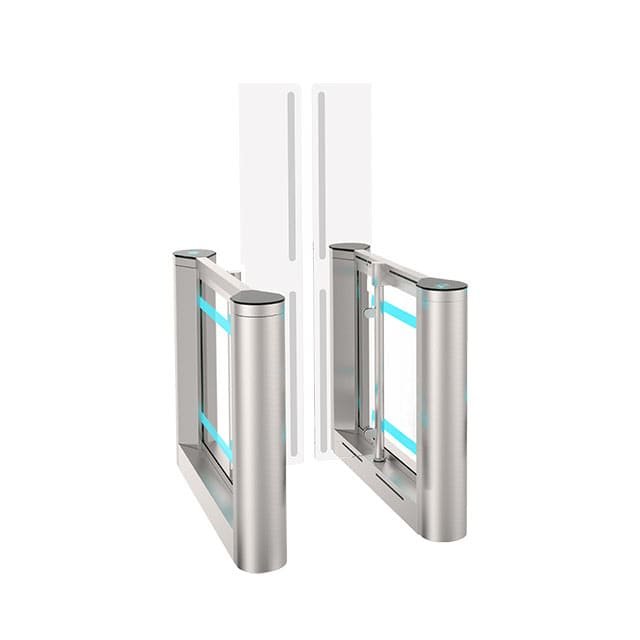

SWEEPER-HG

Security speed gate turnstile with extra high glass wings. Designed to physically prevent unauthorised access by climbing over, suitable for airports and stadiums.

Key Functions

  • High glass barriers (up to 1800 mm)
  • ToothLock® blocking mechanism
  • Advanced infrared sensors for tailgating detection

Optional Accessories

  • Custom glass branding (logo)
  • UPS connectivity
  • AISI 316 stainless steel option

Additional Information

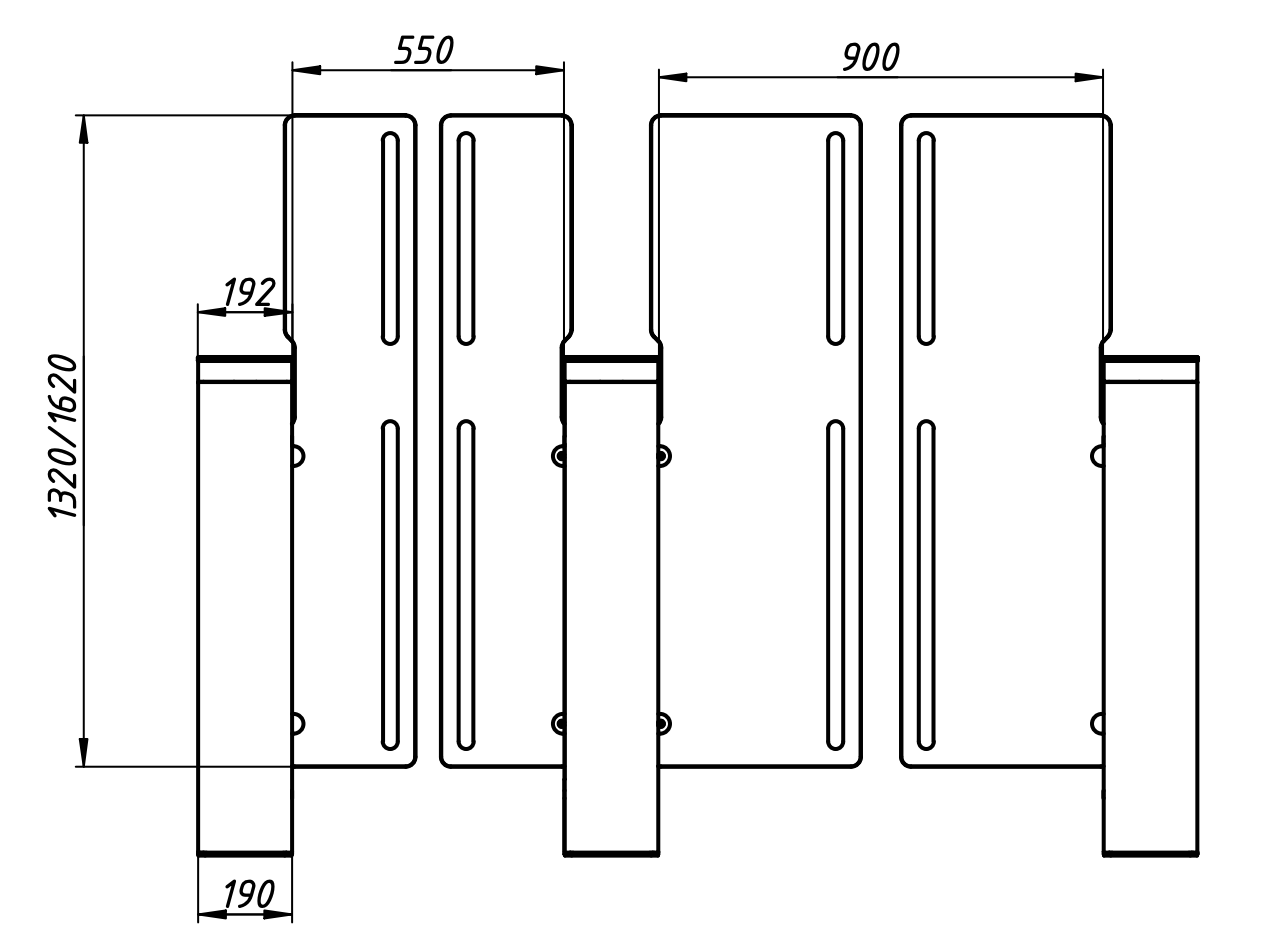

Dimensions

1010 x 190 x 1092 mm, 1010 x 190 x 1092 mm

Passage width

550 – 900 mm

Power supply

100-240 V AC, 50/60 Hz; DC 12 V

Housing material

Brushed stainless steel AISI 304

Top lid

Stainless steel top with glass inserts, Stainless steel top with glass inserts

Mechanism

BMDrive® (BLDC) servo drive, BMDrive® (BLDC) servo drive

In case of power failure

Free entry/exit (gates open automatically), Free entry/exit (gates open automatically)

Protection degree (IP)

IP41

Design and technical parameters are subject to change. Images may differ from actual products.
